Deck and table view types

The deck and the table view types have similar capabilities, but your unique use case will determine which view type is a better fit for your application.

The table view shows information in a very compact way allowing you to quickly scroll to find a row. For a table view example, see the Job_Inline table view in the Field Delivery sample template.

The deck view shows information about each row in a "deck-of-cards" format including an image. If the data doesn't have an image, you should consider adding a virtual column with a thumbnail image constructed with the formula: TEXT_ICON(INITIALS([Column_Of_Type_Name]))

In addition to the image, the deck view will display two text columns as well as any action buttons for phone numbers or emails. The display columns are chosen in the following order: Row Label, Virtual Columns of type Name, Name type columns, key columns, required columns, normal columns in sheet order.

The deck view also has an option to select a layer of data to display as a secondary view. This nested view provides a way to visualize lists of related data created by building references between tables

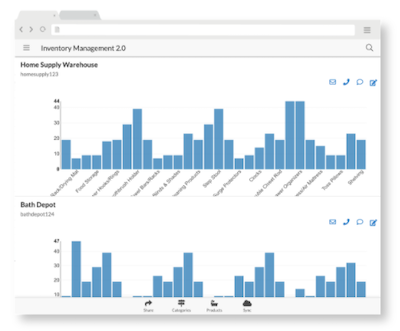

The nested views can be other tables, decks, galleries or charts - for example, a quick snapshot of a product inventory bar chart for each company displayed in a deck view:

To enable a nested view, locate the Nested Table Column field within the deck view and choose a related list of items. Customize the view type of that related list by finding the corresponding inline ref view that was automatically created when the relationship was created.

Get started

Get started with:

Create a deck or table view

To create a deck or table view:

  1.  Create a view, as described in Create a view.
  2. To configure a deck view:
  3. To configure a table view:
  4. Save the app.

Configure the deck view options

Configure the deck View options by using the settings described in the following tables.

Setting

Description

Sort by

Sort the rows by one or more columns.

Click Add and select the column name and whether to sort in Ascending or Descending order. Repeat to configure additional sort by rules.

Group by

Group rows by the values in one or more columns.

Click Add and select the column name and whether to sort in Ascending or Descending order. Repeat to configure additional sort by rules.

Group aggregate

Display a numeric summary of the rows in each group.

Select the format to use for the display from the drop-down list.

Main image

Image column to display for each row.

Select an image column from the drop-down or select one of the following values:

  • Auto assign (column) - Let AppSheet automatically assign a value. Column that is auto-assigned is shown in parentheses.
  • None - Don't set this option.
Primary header

Top text to use for each row.

Select a column from the drop-down or select one of the following values:

  • Auto assign (column) - Let AppSheet automatically assign a value. Column that is auto-assigned is shown in parentheses.

  • None - Don't set this option.

Secondary header

Bottom text to use for each row.

Select a column from the drop-down or select one of the following values:

  • Auto assign (column) - Let AppSheet automatically assign a value. Column that is auto-assigned is shown in parentheses.

  • None - Don't set this option.

Summary column

Top-right text to use for each row.

Select a column from the drop-down or select one of the following values:

  • Auto assign (column) - Let AppSheet automatically assign a value. Column that is auto-assigned is shown in parentheses.

  • None - Don't set this option.

Nested table column

Nested table containing a list of Ref values.

Select a table from the drop-down.

Image shape Shape used for the Main image. Select Square, Round, or Full.
Show action bar Enable to show action buttons at the bottom of each row.
Actions

Action buttons to display in the action bar. The actions are ordered automatically by AppSheet.

To manually control the action order, do any of the following:

  • Click Add to add actions that you want to display in the order you want them to appear.
  • Click  to drag an action to a different order.
  • Click  to delete an action.

If you changed the action order, click Reset to switch back to the AppSheet automatic order.

Position your cursor over the action and click Show icon to open the action configuration in a dialog. You can edit the action configuration and click Done, or click Go to action to open the action in the Actions panel.

Configure the table view options

Configure the table View options by using the settings described in the following tables.

Setting

Description

Sort by

Sort the rows by one or more columns.

Click Add and select the column name and whether to sort in Ascending or Descending order. Repeat to configure additional sort by rules.

Group by

Group rows by the values in one or more columns.

Click Add and select the column name and whether to sort in Ascending or Descending order. Repeat to configure additional sort by rules.

Group aggregate

Display a numeric summary of the rows in each group.

Select the format to use for the display from the drop-down list.

Column order Display columns in a different order than they appear.  See Control column order.
Column width

Control the width of the columns. For example, select Narrow to fit more data on the screen.

Enable QuickEdit

Enable to allow edits to be made directly in the table view.

When creating actions for a table view, if the Position setting for an action is set to Inline for a specific column, the action replaces the column content instead of displaying alongside it. If you want to see both the action and the content, you should create another column to attach the action to. For example, attach the action to the Email column so that both the  Name column contents and the action item display in the table row, as shown in the following figure.

Display inline actions in table views
