Safety and regulatory guide for Pixel 9 Pro Fold

Where to find product information

Safety warnings

Proper handling and usage

Service and support

Regulatory information

Accessibility information

Limited warranty

Where to find product information

This guide includes the basic safety guidelines in the printed Safety and warranty booklet that comes with your Pixel 9 Pro Fold. It also includes additional safety, regulatory and warranty information about the Pixel 9 Pro Fold.

Safety and regulatory information: g.co/pixel/safety or Settings and then About phone and then Safety and regulatory manual

Warranty details for your country of purchase, including instructions for making a claim: g.co/pixel/warranty

Electronic regulatory labels (and Specific Absorption Rate (SAR) values) for your device: Settings and then About phone and then Regulatory labels

Eco-design (energy performance) information: g.co/ecodesign

Comprehensive help online: g.co/pixel/help

Safety warnings

Caution WARNING: HEALTH AND SAFETY INFORMATION; READ BEFORE USE TO REDUCE THE RISK OF PERSONAL INJURY, DISCOMFORT, PROPERTY DAMAGE, INCLUDING DAMAGE TO YOUR DEVICE, ACCESSORIES OR ANY CONNECTED DEVICES, AND OTHER POTENTIAL HAZARDS

Handling

Handle your phone with care. You may damage the device or the batteries if you disassemble, drop, bend, burn, crush or puncture your device. Do not use a phone with a damaged enclosure, a cracked screen or some other form of physical damage. Using a damaged phone may cause overheating or injury. Do not expose your phone to liquids, which can cause a short circuit and overheating. If your phone gets wet, do not attempt to dry it using an external heat source.

Your phone works best in ambient temperatures between [0° and 35°C (32° and 95°F)], and should be stored between ambient temperatures of [-20° and 45°C (-4° and 113°F)]. Do not expose your phone to temperatures above [45°C (113°F)], such as on a car dashboard or near a heating vent, as this may damage the device, overheat the battery or pose a risk of fire. Keep your phone away from heat sources and out of direct sunlight. If your device becomes too hot, disconnect it from its power source if it is plugged in, move it to a cooler place and do not use it until it has cooled. Your phone is designed to work best at an altitude of up to 5,000 m (16,404 ft). Do not open or close your device in extremely cold temperatures of -20°C (-4°F) or lower, as it may damage the device.

Use of your phone in certain modes, such as gaming, taking videos, using a torch setting, or virtual reality or augmented reality features, can cause it to generate more heat than it would under normal operating conditions. This may cause your phone to operate in a reduced-power mode or temporarily shut down. Use extra care when operating the device in these modes. For more information on risks associated with prolonged heat exposure, please refer to the 'Prolonged heat exposure' section below.

Repair and service

Self-service repair is not recommended unless you are an adult with the technical expertise to safely repair electronic devices. If you choose to perform self repair, you agree to assume the risk associated with such repair. Use caution if engaging in repair. Opening and/or repairing your device can present electric shock, device damage, fire and personal injury risks and other hazards. Disassembling the device may result in the loss of water or dust resistance or cause injury or damage to your device. For example, the device contains a laser that can be damaged during disassembly, which might expose you to hazardous laser emissions that are not visible.

Contact customer service if your phone is not working properly or has been damaged. For more information, visit g.co/pixelcare.

Charging

Make sure that the power adaptor and phone are well ventilated when in use or charging. Using damaged cables or power adaptors, or charging when moisture is present, can cause fire, electric shock, injury or damage to the phone or other property. Do not charge your phone when it’s wet. Avoid charging your device in direct sunlight.

When charging the device, make sure that the power adaptor is plugged into a power socket near the device and is easily accessible. Do not force this power adaptor and other plugs or power adaptors into a power socket if space is not sufficient to accommodate both. When disconnecting the power adaptor from a power socket, pull on the adaptor, never on the charging cable. Do not twist or pinch the cable, and do not force a connector into a port. If you receive a message while charging that instructs you to unplug the charging device, disconnect the charging device or power adaptor. Before attempting to charge again, make sure that both the charging cable connector and the device's charging port are dry and clear of any objects.

Only charge your phone with compatible charging accessories available on the Google Store or at Google-authorised resellers (look for Google's 'Made For' badge). The AC adaptor must be certified with a limited power source output per IEC 60950-1 and/or classified PS2 per IEC 62368-1, rated: 5 volts DC, maximum 3 amp; 9 volts DC, maximum 3 amp when used with USB PD-enabled AC adaptor; and up to 11 volts DC, maximum 3 amp for USB PD 3.0 PPS-enabled AC adaptor and qualified per CTIA certification requirements for battery system compliance to IEEE 1725. Failure to use compatible charging accessories can cause fire, electric shock, injury or damage to the device and the accessories.

Wireless charging

Your phone may be charged with a compatible Qi-compliant or compatible Google-approved wireless charger. Do not place other metallic or magnetic objects between the wireless charger and your phone, as this could cause heating of the other object or cause your device not to charge properly. Examples of such objects include coins, jewellery, SIM tray tools and credit cards. If using a metallic or magnetic phone case, remove the case prior to wireless charging, as this may cause the device or charger to overheat, or cause the device not to charge properly.

Prolonged heat exposure

The phone and its charger generate heat during normal operation and comply with applicable surface temperature standards and limits. Avoid prolonged skin contact when the device is in use or charging because exposing skin to hot surfaces for a long period of time may cause discomfort or burns. Do not sleep on or with your device or its power adaptor, or cover them with a blanket or pillow. Be aware of this issue if you have a physical condition that affects your ability to detect heat against your skin.

Child safety

This device is not a toy. Your phone may contain (or may come with) small parts, plastic, cables, glass or metal elements, and parts with sharp edges that may cause an injury or create a choking or strangulation hazard. Children have been strangled on cords and cables. Keep the phone and its accessories, including cords and cables, out of the reach of children (more than 0.9 metres (3 feet) away) and do not allow them to play with the phone and its accessories. They could hurt themselves or others, or could accidentally damage the phone. Seek medical attention immediately if small parts are swallowed or injury occurs.

Hearing loss

Prolonged exposure to loud sounds (including music) can cause hearing loss. To prevent possible hearing damage, avoid listening at high volume for prolonged periods of time. Continued exposure to high volumes and background noise can make loud sounds seem quieter than they actually are. Check the volume before using headphones or earphones.

Battery

This phone contains rechargeable lithium-ion batteries, which are sensitive components that can cause injury if damaged. Google recommends that you seek professional assistance for any device repairs. Self-service repair (including removing and/or replacing the battery) is not recommended unless you are an adult with technical expertise to safely repair electronic devices. If you choose to perform self repair, you agree to assume the risk associated with such repair. Use caution if engaging in repair. Opening and/or repairing your device can present electric shock, device damage, fire and personal injury risks and other hazards. We recommend that you contact Google or a Google authorised service provider to replace the battery. For contact information, visit g.co/pixel/contact.

Improper replacement or use of a non-qualified battery may present a risk of fire, explosion, leakage or other hazard. Do not modify or remanufacture/refurbish the battery, puncture or attempt to insert objects into the battery, immerse or expose the battery to water or other liquids, or expose the battery to fire, excessive heat and/or other hazards.

This device comes with batteries that have proper certifications. In addition, the batteries comply with the IEEE 1725 standard.

Disposal, transportation and recycling

Dispose of and transport your device, batteries and accessories according to local environmental and transportation regulations. Do not improperly transport them or dispose of them in normal household waste. Improper disposal or transport may lead to fire, explosion and/or other hazards. Do not open, crush, heat above 45°C (113°F) or incinerate. For more information on recycling your device, batteries and accessories, visit g.co/HWRecyclingProgram.

Environmental restrictions

To prevent damage to your device parts or internal circuits, do not use or store the device or its accessories in dusty, smoky, damp or dirty environments, or near magnetic fields. Keep it away from heat sources and out of direct sunlight. Do not leave your device inside a vehicle or in places where the temperature may exceed 45°C (113°F), such as on a car dashboard, on a window sill, near a radiator or behind glass that is exposed to direct sunlight or strong ultraviolet light for extended periods of time. This may damage the device, overheat the battery or pose a risk of fire or explosion.

Explosive atmospheres

Do not charge, use, store or transport your device where flammables or explosives are stored (e.g. in petrol stations, fuel depots or chemical plants). Do not use your device where blasting operations are in progress or in potentially explosive atmospheres, such as fuelling areas, fuel storehouses, below deck on boats, fuel or chemical transfer or storage areas, and in areas where the air contains chemicals, vapours or particles (such as grain, dust or metal powders). Sparks in such areas could cause an explosion or fire resulting in bodily injury or even death. Observe all notices and signs where these hazards might exist.

Navigation

Your device can access mapping and navigation services. Maps and navigation depend on a working data connection and location services, and may not be available at all times or in all areas. Maps and directions may be inaccurate and actual conditions may differ from the map, data, traffic, directions, content and other results. Carefully review directions, follow all applicable traffic laws and signs, exercise your independent judgment and apply common sense, and use mapping and navigation services at your own risk. You are responsible at all times for your conduct and its consequences. Navigation with AR requires up-to-date Google Street View imagery and bright outdoor light, and isn't available in India.

Distraction

Using your device when performing certain activities can distract you and may cause a dangerous situation for you or others. To reduce the risk of accidents (and because it’s prohibited by law in many places), do not use your device while driving, cycling or while operating machinery, and do not use it while engaging in any activities that have potentially serious consequences. Follow local laws about using mobile devices, headphones and helmets.

Radio frequency exposure

This device has been evaluated and meets the applicable regulatory requirements for exposure to radio waves and is designed and manufactured not to exceed the applicable emission limits for exposure to radio-frequency (RF) energy.

In countries where the Specific Absorption Rate (SAR) limit is 1.6 W/kg averaged over one gram of tissue, the highest SAR values for this device type are 1.16 W/kg when used against the head with no separation, 1.19 W/kg against the body with 0.5 cm (0.2 in) of separation and 1.13 W/kg against the body with 1.0 cm (0.4 in) of separation. In countries where the Specific Absorption Rate (SAR) limit is 2.0 W/kg averaged over ten grams of tissue, the highest SAR values for this device type are 0.98 W/kg when used against the head with no separation and 1.39 W/kg against the body with 5 mm (0.2 in) of separation.

You can find the SAR values applicable to each of those jurisdictions on your device: Settings and then About phone and then Regulatory labels.

To reduce exposure to RF energy, use a hands-free option, such as the built-in speakerphone, headphones or other similar accessories. Ensure that device accessories, such as a device case and device holster, are not composed of metal components. Keep the device away from your body to meet the distance requirement.

You can find additional information about SAR on the following pages:

fcc.gov
icnirp.org
ec.europa.eu
dot.gov.in

Radio-frequency interference

Observe rules that prohibit the use of wireless technology (e.g. mobile data or Wi-Fi). Your device is designed to comply with regulations governing radio-frequency emissions but use of wireless devices can negatively affect other electronic equipment. For example, while flying in an aircraft or immediately before boarding, use your wireless device only according to instructions provided by the airline. Use of a wireless device in an aircraft may disrupt wireless networks, present a hazard to aircraft operation or be illegal. You may be able to use your device in aeroplane mode.

Ultra-wideband (UWB)

When the use of ultra-wideband is prohibited in your region, such as while in an aircraft, ultra-wideband can be turned off by turning on aeroplane mode. Turn on aeroplane mode by going to Quick Settings and then Tap Aeroplane mode. Aeroplane mode can also be turned on in Settings and then Network and Internet and then toggle Aeroplane mode. In the US, UWB devices may not be employed for the operation of toys. Operation on board an aircraft, a ship or a satellite is prohibited.

Emergency communications

Wireless devices may not be reliable for emergency communications. This device operates using radio signals and cannot guarantee that it will establish or maintain a connection in all conditions. Your device is also powered by a rechargeable battery that may be affected by temperature, use, damage and other conditions. Never rely solely on any wireless phone for emergency communications. While some jurisdictions transmit emergency information over wireless networks, your device may not always receive these communications depending upon network connectivity or other factors. Access to some features and emergency information or communications may not be available in all areas or languages. When the phone’s screen is locked, you can initiate an emergency call with a long press on the power button and the volume up button at the same time. The screen will then show the emergency call button. Press this button to make the emergency call.

Medical device interference

Your device uses radios and other components that emit electromagnetic fields, and also contains magnets. These electromagnetic fields and magnets may interfere with medical devices, such as pacemakers and other implanted medical devices. Always keep the phone and its charger at a safe distance away from the medical device. If you have questions about using your Google device with or near your medical device, consult your healthcare provider before using your phone. If you suspect that your phone is interfering with your medical device, turn off your Google device and consult your doctor for information specific to your medical device.

Hospitals

Switch off your wireless device when requested to do so in hospitals, clinics or healthcare facilities. These requests are designed to prevent possible interference with sensitive medical equipment.

Health-related functions

Your phone and any general wellness, sleep, exercise, heart rate and associated fitness applications or functions are not medical devices, unless clearly marked, and are intended for information purposes only. They are not designed or intended for use in the diagnosis of disease or other conditions, or in the cure, monitoring, mitigation, treatment or prevention of disease or other conditions.

LED

The LEDs visible on your device are safe under reasonably foreseeable conditions per the requirements in IEC 62471. However, it is recommended that you do not direct the LEDs at anyone’s eyes.

Skin irritation

Some people may experience reactions to materials, such as nickel, found in items that are in extended contact with the skin. Stop use of the phone and consult a doctor if you experience skin irritation in locations that are in frequent contact with the phone.

Medical conditions

A small percentage of users may experience headaches, seizures, blackouts, eye strain, fatigue or dry eyes that are triggered by visual stimuli, such as flashing lights or bright patterns, or use of electronics with displays. Those symptoms can be experienced by people who have never previously experienced such issues. If you have a history of seizures, blackouts or epilepsy, a medical condition, or experience discomfort that you believe could be affected by your phone, consult with a doctor before using your device. Stop using your phone immediately and consult a doctor if you experience any symptoms that you believe could be caused or affected by your phone (for example, headaches, blackouts or seizures).

Musculoskeletal disorders

Repetitive activities, such as typing, tapping or swiping on the screen of your phone, may cause discomfort in your fingers, hands, wrists, arms, shoulders or other parts of your body. If you experience any discomfort from such activities, stop using your phone and consult your doctor.

Consumer laser product

Class 1 consumer laser product Caution – Your phone contains a Class 1 laser module. The design of the device incorporates optics and protective housing such that there is no access to a level of laser radiation above Class 1.

Laser modules in this product comply with EN 50689:2021, EN 60825-1+A11:2021 and 21 CFR 1040.10 and 1040.11, except for conformance with IEC 60825-1 Ed. 3., as described in Laser Notice No. 56, dated 8 May 2019. Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. Since the laser could be damaged during repair or disassembly, which could result in hazardous exposure to infrared laser emissions that are not visible, this product should be serviced by Google or an authorised service provider.

Auto-focus laser module: Made in China. STMicroelectronics (R&D) LTD., 1 Tanfield, 1st Floor, Edinburgh EH3 5DA, United Kingdom

Proximity laser module: Made in Austria. ams-OSRAM AG, Tobelbader Str. 30, 8141 Premstaetten, Austria

Proper handling and usage

Follow these guidelines when using, storing or cleaning your phone.

Operating temperature

Do not use or charge the phone at ambient temperatures lower than 0°C (32°F) or higher than 35°C (95°F). If the interior temperature of the device exceeds normal operating temperatures, you may experience the following behaviours while the device tries to regulate its temperature: reduced performance and connectivity, inability to charge or powering down of the display or device power down. You may not be able to use the device while it regulates its temperature. Move the device to a cooler (or warmer) location and wait a few minutes before attempting to use it again.

Care and cleaning

Unplug the phone and power adaptor before cleaning, during lightning storms or when unused for extended periods of time. Do not clean your phone while it is charging as this may cause injury or damage to your device. Avoid solvents and abrasive material that may cause damage to the product surface. Do not use any chemical detergent, powder or other chemical agents (such as benzene) to clean the phone or accessories.

Exposure to makeup, chemicals and dyed materials such as denim can stain light coloured Pixel 9 Pro Fold and cases.

To clean your phone, we recommend gently wiping it with a soft, lint-free cloth. Use a dry cloth for streaks, smudges or dust, and a slightly damp (not wet) cloth for colour transfers such as from makeup or a new pair of jeans. For stains and grime, use screen wipes or glasses cleaner on the screen, and ordinary household soap or bleach-free cleaning wipes on the back and sides. For additional care and cleaning instructions, see g.co/pixel/care.

To disinfect your phone, including your screen, you can use ordinary household disinfecting wipes or 70% isopropyl alcohol-based wipes. Do not use wipes that contain bleach.

For basic care and cleaning, visit g.co/pixel/care.

Foldable screen care

Flexible screens are softer than traditional phone screens, so avoid contact with sand, crumbs, fingernails and sharp objects. Ensure that there are no objects or fine particles (such as sand or dirt) on the foldable display or in the display hinge when closing it. Do not remove or peel back the pre-installed screen protector, as it can cause damage. Do not apply a third-party screen protector. Wipe your screen clean regularly.

Water resistance

Your phone is designed to comply with water protection rating IPX8 under IEC standard 60529 when it leaves the factory, but it is not waterproof. Water resistance is not a permanent condition and diminishes or is lost over time due to normal wear and tear, device repair, disassembly or damage. Dropping your phone may result in loss of water resistance. Liquid damage voids the limited warranty (see below). Do not expose your Pixel 9 Pro Fold to liquids, which can cause short circuit and/or overheating. Device chargers and other accessories used with your Pixel 9 Pro Fold are not water-resistant and should not be exposed to liquids. For more information, visit g.co/pixel/water.

Not dust resistant

Your phone, the device charger and other accessories used with the phone are not dust-resistant and should not be exposed to dust. Do not expose your phone to dusty environments or to sand, dirt or other fine particles, as they may scratch or damage the softer flexible display or damage the hinge mechanism.

Magnetic fields

Avoid placing any items containing magnets or which are sensitive to magnetism, such as credit cards, bank cards, audio/video tapes or magnetic memory devices, near this phone or its charging cable connector, because you may lose information stored on such items. Items containing information sensitive to magnets should be kept at least 5 cm (2 inches) away from this phone.

Service and support

Repairs or modifications made without sufficient technical expertise could result in permanent damage to the device or injury. Google recommends that you seek professional assistance for any device repairs. Contact customer service for alternative repair service options.

If you send your phone in for service, you might receive a replacement in place of your original device. Goods presented for repair may be replaced by refurbished goods of the same type rather than being repaired. Refurbished parts may be used to repair the goods. If the goods are capable of retaining user-generated data, the repair or replacement may result in loss of the data. For online help and support, visit g.co/pixel/help.

Regulatory information

Regulatory information, certification and compliance marks specific to Pixel 9 Pro Fold can be found on your phone under Settings and then About phone and then Regulatory labels.

EMC compliance statement

Important: This device and other in-box accessories have demonstrated electromagnetic compatibility (EMC) compliance under conditions that included the use of compliant peripheral devices and shielded cables between system components. It is important that you use compliant peripheral devices and shielded cables between system components to reduce the possibility of causing interference to radios, televisions and other electronic devices.

Regulatory information: United States

FCC regulatory compliance

Important: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio-frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

  • Reorient or relocate the receiving antenna.
  • Increase the separation between the equipment and receiver.
  • Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
  • Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications not expressly approved by Google could void your authority to operate the equipment.

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:

  1. These devices may not cause harmful interference.
  2. These devices must accept any interference received, including interference that may cause undesired operation.

Operation of transmitters in the 5.925–7.125 GHz band is prohibited for control of or communications with unmanned aircraft systems.

Model number: GGH2X

Product name: Pixel 9 Pro Fold

US responsible party:

Google LLC

1600 Amphitheatre Parkway

Mountain View, CA, USA 94043

Contact: g.co/pixel/contact

Hearing aid compatibility (HAC)

This phone is hearing aid compatible as determined by ANSI C63.19-2019, amended under the conditions of FCC limited waiver DA 23-914. The ANSI C63.19-2019 standard does not use the rating system that older versions of the standard used, i.e. M rating, which is a measure of immunity to radio-frequency interference for acoustic coupling hearing aids and T rating, which is a measure of performance when used with an inductive coupling (telecoil) hearing aid. Specifically, the 2019 ANSI standard requires that handsets meet volume control specifications in order to be considered hearing aid compatible under that standard. Under the waiver, certain volume control test requirements are relaxed or waived and certain test configurations were partially or not tested. For instance, only Commercial Mobile Radio Services (CMRS) narrowband and CMRS wideband voice codecs are required to comply with the volume control requirements of the Volume Control Standard. All other codecs, such as full-band and super-wideband codecs, or over-the-top (OTT) codecs, are not required to comply with the Volume Control Standard. In order to pass the volume control requirement, a handset must meet a two-part test. The first part of the requirement tests for conversational gain with a hearing aid and the second part of the requirement tests for conversational gain without a hearing aid. To pass both parts of the requirement, a handset must have at least 6 dB of conversational gain with or without a hearing aid.

This phone has been evaluated and meets the volume control requirements per technical specification ANSI C63.19-2019 and under FCC limited waiver DA 23-914. The actual conversational gain for fully-tested enhanced voice services (EVS) narrowband and EVS wideband codecs and air interface combinations is 21 dB with hearing aids and 18 dB without hearing aids. The lowest conversational gain for partially-tested enhanced full rate (EFR), adaptive multi-rate (AMR) narrowband and AMR wideband codecs and air interface combinations is 19 dB with hearing aids and 18 dB without hearing aids.

This phone has been tested and certified for use with hearing aids for some of the wireless technologies that they use. However, there may be some newer wireless technologies used in these phones that have not yet been tested for use with hearing aids. It is important to try the different features of your phone thoroughly and in different locations, using your hearing aid or cochlear implant, to determine if you hear any interfering noise. Consult your service provider or Google for information on hearing aid compatibility. If you have questions about return or exchange policies, consult your service provider or phone retailer.

The table below shows the wireless technologies (including frequencies/bands by air interface and codec) that were tested or not tested according to FCC rules and limited waiver DA 23-914.

Air interface

Bands

Codec

RFE

T-coil

Volume

control

LTE/

NR/

Wi-Fi

LTE: 2/4/5/7/12/13/14/17/25/26/30/38/41/48/66/71

NR: n2/5/7/12/14/25/26/30/38/41/48/66/70/71/77/78

Wi-Fi: 2.4 GHz, U-NII 1/2A/2C/3/4/5*

AMR-NB, AMR-WB, EVS-NB, EVS-WB

Yes

Yes

Yes

EVS-SWB, OPUS

Yes

Yes

No

NR/

Wi-Fi

NR: n258/260/261

Wi-Fi: U-NII 5*/6/7/8

AMR-NB, AMR-WB, EVS-NB, EVS-WB,

EVS-SWB, OPUS

No

No

No

UMTS/

GSM

UMTS: V, IV, II
GSM: 850/1900

EFR (GSM only), AMR-NB, AMR-WB

Yes

Yes

Yes

UMTS: V, IV, II
GSM: 850/1900

OPUS

Yes

Yes

No

* U-NII 5 is tested for hearing aid compatibility for channels which are entirely below 6 GHz. Channels partially or entirely above 6 GHz are not subject to testing.

When the use of the satellite feature is prohibited, such as while in an aircraft, the satellite feature can be turned off by turning on aeroplane mode. Turn on aeroplane mode by going to Quick Settings and then Tap Aeroplane mode. Aeroplane mode can also be turned on in Settings and then Network and Internet and then toggle Aeroplane mode.

Regulatory information: Canada

Industry Canada: Class B

This device complies with ICES-003 Class B limits.

Your device complies with ISED license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

The device for operation in the band 5150–5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems.

The device for operation in the 5925–7125 MHz band shall not be used for control of or communications with unmanned aircraft systems.

Cet appareil est conforme aux limites ICES-003 Classe B.

Le présent appareil est conforme aux CNR d'ISDE Canada applicables aux appareils radio

exempts de licence. L'exploitation est autorisée aux deux conditions suivantes:

(1) l'appareil ne doit pas produire de brouillage, et

(2) l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.

Les dispositifs fonctionnant dans la bande de 5 150 à 5 250 MHz sont réservés uniquement pour une utilisation à l’intérieur afin de réduire les risques de brouillage préjudiciable aux systèmes de satellites mobiles utilisant les mêmes canaux.

Les dispositifs fonctionnant dans la bande de 5 925 à 7 125 MHz ne doivent pas être utilisés pour commander des systèmes d’aéronef sans pilote ni pour communiquer avec de tels systèmes.

Regulatory information: UK

UK compliance notice

Hereby, Google LLC declares that radio equipment type: GGH2X is in compliance with Radio Equipment Regulation 2017. The full Declaration of Conformity can be found at g.co/pixel/conformity.

The device is restricted to indoor use only when operating in the 5,250 to 5,350 MHz and the 5,925 to 6,425 MHz (LPI) frequency ranges in the UK.

Information on frequency bands and wireless output power

Data given here is the maximum radio-frequency power transmitted in the frequency band(s) in which the radio equipment operates.

Frequency Power
2,400–2,483.5 MHz < 20 dBm
5,150–5,350 MHz < 23 dBm
5,470–5,725 MHz < 23 dBm
5,725–5,875 MHz < 14 dBm
5,925–6,425 MHz (VLP/LPI) < 14 dBm/< 23 dBm
13.56 MHz < -8 dBuA/m @ 10m
6–8.5 MHz < -3 dBm/50 MHz
GSM 900 < PC 4
GSM 1800 < PC 1
UMTS band I/VIII < PC 3
LTE B1, B3, B7, B8, B20, B28, B40, B42 < PC 3
LTE B38, B41 < PC 2
NR n1, n3, n7, n8, n20, n28, n38 < PC 3
NR n40 < PC 2
NR n41, n77, n7 < PC 1.5
B255, B256 < PC 3

Radio-frequency interference

Google is not responsible for any radio or television interference caused by unauthorised modification of these devices or accessories, or by the substitution or attachment of connecting cables and equipment other than that specified by Google. The correction of interference caused by such unauthorised modification, substitution or attachment is the responsibility of the user. Google and its authorised resellers or distributors are not liable for any damage or violation of government regulations that may arise from the user failing to comply with these guidelines.

RoHS compliance

This product is in compliance with Statutory Instrument 2012 No. 3032 The Restriction of the Use of Certain Hazardous Substance in Electrical and Electronic Equipment Regulations.

UK REACH

UK REACH (Registration, Evaluation, Authorisation and Restriction of Chemicals, Statutory Instrument 2020 No. 1577) is the UK chemical substances regulatory framework. Google complies with all requirements of the regulation and we are committed to providing our customers with information about the presence of REACH Substances of Very High Concern (SVHCs). For information, you can contact Google at Env-Compliance@google.com.

Waste electrical and electronic equipment (WEEE) and batteries

The WEEE symbol to the left means that according to local laws and regulations, your product and its battery(ies) should be disposed of separately from household waste. When this product reaches its end of life, take it to a collection point designated by local authorities for safe disposal or recycling. The separate collection and recycling of your product, its electrical accessories and its battery(ies) will help conserve natural resources, protect human health and help the environment.

Manufacturer: Google LLC 1600 Amphitheatre Parkway, Mountain View, CA 94043, United States.

Google Commerce Limited UK establishment, Belgrave House, 76 Buckingham Palace Road, London, SW1W 9TQ.

Regulatory information: EU

EU compliance notice

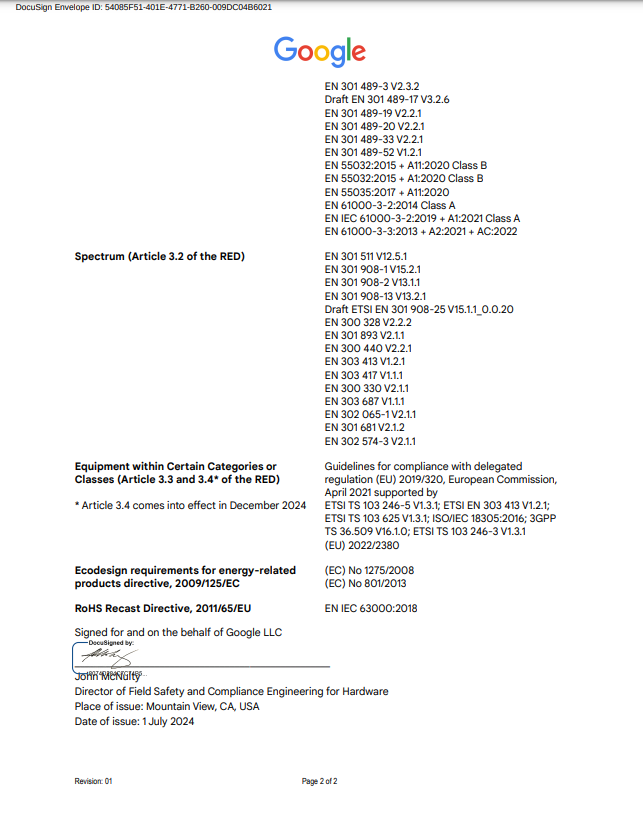

Hereby, Google LLC declares that radio equipment type: GGH2X is in compliance with Directive 2014/53/EU (Radio Equipment Directive). The full Declaration of Conformity may be found at g.co/pixel/conformity.

Restrictions or requirements under Directive 2014/53/EU

The device is restricted to indoor use only when operating in the 5,250 to 5,350 MHz and 5,925 to 6,425 MHz (LPI) frequency ranges in AT, BE, BG, CY, CZ, DE, DK, EE, EL, ES, FI, FR, HR, HU, IE, IT, LT, LU, LV, MT, NL, PL, PT, RO, SE, SI, SK, UK(NI), CH, IS, LI, NO, TR.

Information on frequency bands and wireless output power

European Union

Data given here is the maximum radio-frequency power transmitted in the frequency band(s) in which the radio equipment operates.

Frequency Power
2,400–2,483.5 MHz < 20 dBm
5,150–5,350 MHz < 23 dBm
5,470–5,725 MHz < 23 dBm
5,725–5,875 MHz < 14 dBm
5,925–6,425 MHz (VLP/LPI) < 14 dBm/< 23 dBm
13.56 MHz < -8 dBuA/m @ 10m
6–8.5 MHz < -3 dBm/50 MHz
GSM 900 < PC 4
GSM 1800 < PC 1
UMTS band I/VIII < PC 3
LTE B1, B3, B7, B8, B20, B28, B40, B42 < PC 3
LTE B38, B41 < PC 2
NR n1, n3, n7, n8, n20, n28, n38 < PC 3
NR n40 < PC 2
NR n41, n77, n7 < PC 1.5
B255, B256 < PC 3

Radio-frequency interference

Google is not responsible for any radio or television interference caused by unauthorised modification of these devices or accessories, or by the substitution or attachment of connecting cables and equipment other than that specified by Google. The correction of interference caused by such unauthorised modification, substitution or attachment is the responsibility of the user. Google and its authorised resellers or distributors are not liable for any damage or violation of government regulations that may arise from the user failing to comply with these guidelines.

Specific Absorption Rate (SAR) information

This phone complies with radio-frequency specifications when used against the head with no separation and the body with 5 mm of separation, limited to 2 W/kg averaged over 10 grams of tissue, and limb with no separation, limited to 4 W/kg, averaged over 10 grams of tissue.

For this phone, the highest Specific Absorption Rate (SAR) values reported for this device type are head: 0.98 W/kg, body: 1.39 W/kg, limb: 2.79 W/kg.

Waste electrical and electronic equipment (WEEE) and batteries

The WEEE symbol to the left means that according to local laws and regulations, your product and its battery(ies) should be disposed of separately from household waste. When this product reaches its end of life, take it to a collection point designated by local authorities for safe disposal or recycling. The separate collection and recycling of your product, its electrical accessories and its battery(ies) will help conserve natural resources, protect human health and help the environment.

RoHS compliance

This product is in compliance with Directive 2011/65/EU of the European Parliament and of the Council of 8 June 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS) and its amendments.

REACH

REACH (Registration, Evaluation, Authorisation and Restriction of Chemicals, EC No. 1907/2006) is the EU chemical substances regulatory framework. Google complies with all requirements of the regulation and we are committed to providing our customers with information about the presence of REACH Substances of Very High Concern (SVHCs). For information, you can contact Google at Env-Compliance@google.com.

Manufacturer: Google LLC 1600 Amphitheatre Parkway, Mountain View, CA 94043 United States.

Google Commerce Limited, 70 Sir John Rogerson’s Quay, Dublin 2, D02 R296, Ireland.

Common charger directive

The power delivered by the charger must be between min. 7.5 watts required by the radio equipment and max. 27 watts in order to achieve the maximum charging speed.

The device supports the USB Power Delivery charging protocol 'USB PD fast charging'.

Charger that delivers between 7.5–27 watts

Regulatory information: Australia

The device is restricted to indoor use only when operating in the 5,250 to 5,350 MHz and 5,925 to 6,425 MHz (LPI) frequency ranges to reduce the potential for harmful interference to co-channel mobile satellite systems.

Ultra-wideband transmitters must not be operated within a nominated distance from specified Australian radio-astronomy sites. For further information about nominated distance, please refer to the Radiocommunications (Low Interference Potential Devices) Class Licence 2015 published by the Australian Communications and Media Authority.

Regulatory information: Singapore

Complies with

IMDA Standards

DA107248

Regulatory information: Japan

When operating in 5 GHz (W52/W53) and 6 GHz (LPI), the device is restricted to indoor use only (except to communicate to W52 high-power radio).

5 GHz (W52、W53)および 6 GHz (LPI)周波数帯の場合、デバイスの使用は屋内のみに制限されます (5.2 GHz帯高出力データ通信システムの基地局や中継局との通信を除く)。

This is an item of Class B equipment. Although this equipment is intended for use in a residential environment, it could cause poor reception if used near a radio or a television receiver. Please follow the instructions in the instruction manual.

VCCI-B

VCCI

Regulatory information: India

Specific Absorption Rate (SAR) information

Your device is a radio transmitter and receiver. It complies with the international guidelines in relation to the limiting of human exposure to electromagnetic fields and has been specifically designed to meet the guidelines for exposure to radio waves established by the Department of Telecommunications, Ministry of Communications and Information Technology, Government of India ('DoT'). The guidelines use a unit of measurement known as Specific Absorption Rate ('SAR'), which is a unit of body-absorbed radio frequency quantity when the device is in use. The SAR limit in India for mobile devices is 1.6 W/kg over a mass of 1 gram of human tissue.

Your device complies with these guidelines when used against the head with no separation and body with 10 mm separation. Ensure that device accessories, such as device case and device holster, are not composed of metal components. Keep the device away from your body to meet the distance requirement.

For Pixel 9 Pro Fold, the highest Specific Absorption Rate (SAR) values reported are:

  • Head: 1.03 W/kg.
  • Body: 1.12 W/kg.

You can also see SAR values on the website of the DoT/Telecommunication Engineering Centre.

While most of the laboratory studies have been unable to find a direct link between exposure to radio frequency radiation and health, the DoT has prescribed the following precautionary measures while using the mobile handset:

Use a wireless hands-free system (headphone, headset) with a lower-power Bluetooth emitter. Make sure that the mobile phone has a low SAR. Keep your calls short or send a text message (SMS) instead. This advice applies especially to children, adolescents and pregnant women. Use the mobile phone when the signal quality is good. People with active medical implants should preferably keep the mobile phone at least 15 cm away from the implant.

India recycling, e-waste management and handling statement

In India, this label indicates that this product should not be thrown away with household commercial and industrial waste. It should be deposited at an appropriate facility to allow recovery and recycling.

Google declares that your device has been designed and manufactured in compliance with E-Waste (Management) Rules, 2022 (hereafter 'the Rules') and is specifically in compliance with Rule 16 (1) on the reduction in the use of hazardous substances in the manufacture of electrical and electronic equipment and their maximum allowed concentrations by weight in the homogenous materials (except for the exemptions listed in schedule II).

Improper handling, disposal, accidental breakage, damage or improper recycling of e-waste may present risks, including, but not limited to, fire, explosion and/or other hazards, and uncontrolled waste disposal which may be detrimental to/have adverse effects on the environment as it prevents reuse of resources. Some e-waste may contain hazardous chemicals which, if disposed of improperly, may make water, soil and other natural resources toxic. Improper disposal may cause harm to plant, animal and human life.

Regulatory information: Taiwan

無線射頻暴露

以 GGH2X而言,SAR 標準值:2.0 W/kg,送測產品實測值為:0.96 W/kg。

台灣法規遵循

使用過度恐傷害視力

  1. 使用30分鐘請休息10分鐘。
  2. 未滿2歲幼兒不看螢幕,2歲以上每天看螢幕不要超過1小時。

減少電磁波影響,請妥適使用

取得審驗證明之低功率射頻器材,非經核准,公司、商號或使用者均不得擅自變更頻率、加大功率或變更原設計之特性及功能。低功率射頻器材之使用不得影響飛航安全及干擾合法通信;經發現有干擾現象時,應立即停用,並改善至無干擾時方得繼續使用。前述合法通信,指依電信管理法規定作業之無線電通信。低功率射頻器材須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。

應避免影響附近雷達系統之操作。

經過格式化的實際儲存空間容量會略減。

Taiwan RoHS

Equipment name: Pixel 9 Pro Fold, Type designation: GGH2X

設備名稱:移動電話,型號(型式):GGH2X

Unit

限用物質及其化學符號

Restricted substances and their chemical symbols

鉛Lead

(Pb)

汞Mercury

(Hg)

鎘Cadmium

(Cd)

六價鉻Hexavalent chromium

(Cr+6)

多溴聯苯Polybrominated biphenyls

(PBB)

多溴二苯醚Polybrominated diphenyl ethers (PBDE)

外殼 Enclosure

O

O

O

O

O

O

電子元件 Electronic component

O

O

O

O

O

連接器 Connector

O

O

O

O

O

印刷電路板 PCB

O

O

O

O

O

O

顯示屏 Display

O

O

O

O

O

O

電池 Battery

O

O

O

O

O

包裝 Packaging

O

O

O

O

O

O

其它 Other

O

O

O

O

O

O

備考1.〝超出0.1 wt %〞及〝超出0.01 wt %〞係指限用物質之百分比含量超出百分比含量基準值。

Note 1: 'Exceeding 0.1 wt%' and 'exceeding 0.01 wt%' indicate that the percentage content of the restricted substance exceeds the reference percentage value of presence condition.

備考2.〝O〞係指該項限用物質之百分比含量未超出百分比含量基準值。

Note 2: 'O' indicates that the percentage content of the restricted substance does not exceed the percentage of reference value of presence.

備考3.〝-〞係指該項限用物質為排除項目。

Note 3: The '-' indicates that the restricted substance corresponds to the exemption.

Accessibility information

Pixel 9 Pro Fold

Accessibility feature

Requirements - description

Value

Handset/Hardware information

Touch screen

Does the device have a touch screen

Yes

If the device has a touch screen, is it capacitive (sometimes referred to as heat activated)

Yes

Key identification

Are individual keys easily discernible to the user

N/A

How are the keys discernible – separate keys, use of ridges to define

N/A

Key centre point distance

What is the distance from the centre point of one number key to another

N/A

Keyboard layout

The keypad is laid out like a QWERTY typewriter keyboard

Yes

Lanyard pin for key ring or lanyard strap

Has a small bar allowing a key ring or neck strap (lanyard) to be attached

No

Differentiation of function keys

The number keys have a different colour or shape from the other keys, making them easier to tell apart by touch or by sight

N/A

Shape of device

A. Clam shell/Flip phone

B. Candy bar/Stick

C. Slide

D. Swivel

E. Touch screen

F. Other

E

Operating system

The operating system and version used by this phone

Android 14

Anti-slip features

Has a non-slip coating or ridges to prevent it slipping out of your hand

No

Mobility/Dexterity features

Handset weight

Handset weight including battery

257 grams

Easy battery placement

Is battery clearly marked for proper orientation and placement

N/A

Speaker-phone capable

Hands-free operation during dialling and after call initiated

Yes

Guarded/recessed keys

Individual keys are recessed or guarded in some way to reduce the chance that you will press the wrong key

N/A

Wireless earphones/headsets

Wireless earphones and headsets, such as Bluetooth headsets, are supported

Yes

Coupling to a device

To allow people to use computers as text terminals. Also allows customised devices to work with the phone. Device can be connected to the phone by using:



cable (an electrical wire)

Yes

infrared signal (which travels through the air like a radio wave but cannot pass through walls or other solid objects)

No

Bluetooth/wireless LAN (radio signals which travel through the air and may also be able to pass through walls or other solid objects)

Yes

other connections than those described above (please describe): NFC, UWB

Yes

Flat back for table-top operation

Has a flat back, so it can be used while it is lying on a table

Yes

Any key answering

The user can answer the call by pressing any key

No

Hand movement

Some controls require you to pinch or twist them with your fingers, or rotate your wrist

No

Voice recognition for dialling

Allows you to dial a number by speaking the person's name, if it is stored in your contact list (a personal 'telephone book' that you create in your phone)

Yes

Voice recognition for accessing features

Allows you to activate features by speaking commands into the phone, reducing the need to use the keypad

Yes

Automatic answering

Enables the phone to pick up a call automatically after a designated number of rings

No

Vision features

Tactile key markers – 'F' and 'J'

The 'F' and 'J' keys have raised dots or bumps on them so that you can distinguish them by touch (only relevant for phones that have a QWERTY typewriter-style keypad)

N/A

Standard number key layouts

The number keys are laid out in the standard way with 1 2 3 at the top and * 0 # at the bottom

Yes – touch screen keyboard

Key feedback – tactile

When you press a key, you can feel a physical click, so that you know it has been pressed

Yes

Key feedback – audible

When you press a key, it makes a sound, so that you know it has been pressed

Yes

Audible identification of keys – spoken

When you press a number key, the number is spoken out, so that you know you have pressed the correct one

Yes, when using TalkBack

Audible identification of keys – functions

The sounds that you hear when you press a key are different for number keys and function keys, so that you can easily tell them apart

Yes

Adjustable font – style

You can change the font (typeface) used for the text on the display, which may make it easier to read

No

Adjustable font – size

You can make the text on the display larger or smaller to make it easier to read

Yes

Personalised shortcuts

You can assign a particular feature to a single key or a short key sequence

Yes

Display characteristics – Adjustable Contrast Control

You can adjust the contrast of the display to make text and symbols easier to see against the background

Yes

Display characteristics – Adjustable Brightness Control

You can adjust the brightness of the display to make it easier to read

Yes

Display characteristics – Main Display Size

Size of the main display

6.3"

(20.2:9 aspect ratio) (external cover)

8.0" (1.04:1 aspect ratio) (internal folding)

Display characteristics – main display resolution

The number of dots (called pixels) used to display text and images on the main display. More dots mean more detail.

External cover: 2424 x 1080 (FHD+ )

Internal folding: 2152 x 2076 (FHD+ )

Display characteristics – colour differentiation

The information presented on the display does not rely on colour perception for understanding (e.g. you do not have to be able to distinguish red symbols from green symbols)

Yes

Display characteristics – Symbols/Icons

Menus can be displayed using symbols or pictures in a grid layout. This can make them easier for some people to understand or remember

No

Display characteristics – Screen flicker

The main display does not flicker at a rate that could cause problems for people with photo-epilepsy (between 2 Hz and 60 Hz)

Yes

Voice output of caller ID from contacts list

When you receive a call, it speaks the caller's name if it is stored in your contact

Yes

Voice output of SMS: inbuilt

Can read text messages out loud to you

Yes

Voiced menus

Speaks the menu options, allowing you to access functions even if you cannot read the display

Yes

Alternative format user manual

The user manual is available in alternative formats such as accessible online

Yes

Hearing Features

Vibrating alert

The phone can be set to vibrate when it receives a call or text message or when it gives a warning alert

Yes

Visual alerts – Incoming calls

When a call or text message comes in, it displays a visual alert, such as the caller's name or photo if it is stored in your contact list

Yes

Two-way video communications – using mobile networks

Allows you to make video calls in which you can see the other person and they can see you using your mobile network

Yes

Two-way video communications – using wireless LAN networks

Allows you to make video calls in which you can see the other person and they can see you using your wireless LAN network

Yes

Headset – plug type

The type of plug a headset will need to have so that it can be connected to the phone

USB-C

Hearing aid compatibility

When used with a hearing aid, set to the 'T' position, the sound is clearer

Yes

Alternative hearing aid technologies

When used with alternative coupling technologies, the sound is clearer

N/A

Messaging Options – MMS

Allows you to send and receive multimedia messages, which can include photographs, audio and video clips

Yes

SMS personalisation and reuse

Allows you to create standard text messages that you can quickly send to anyone without having to retype them each time. For example, 'I'm in a meeting; I'll call you back'

Yes

Messaging options – Email

Allows you to send and receive email messages

Yes

Internet capability

You can use the phone to browse websites and use other Internet-based services

Yes

Additional features and characteristics

Google Pixel 9 Pro Fold is a touchscreen device. However, it has the following touch keys: power and volume control keys

Yes

Optional features and accessories

The nature of the open operating system and accessibility features mean that some features are provided as part of the Android operating system and as such are subject to change and upgrade during the life of the product

Yes

Limited warranty

The limited warranty is available in the Google Hardware Warranty Centre.

©2024 Google LLC. All rights reserved.

Pixel 9 Pro Fold, G logo, Google, Android and related marks and logos are trademarks of Google LLC. Wi-Fi® and the Wi-Fi logo are trademarks of Wi-Fi Alliance. The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. All other trademarks are the property of their respective owners.

true
Search
Clear search
Close search
Google apps
Main menu
