Learn about Nest thermostat displays

Google Nest thermostats do more than let you change the temperature. They also let you know what's happening. For instance, your thermostat shows you important notifications about issues with your system, the ambient temperature, the temperature your system is set to reach, and more.

Here's a complete guide to all the symbols, icons, numbers and more of what will appear on your thermostat.

This article applies to the following Google Nest thermostats models:
Nest Thermostat E	Nest Learning Thermostat
Thermostats that have the Heat Link
How to tell which thermostat you have

The temperature screen It shows the current ambient temperature, the temperature your thermostat is set to (the Target Temperature), and icons like the Nest Leaf when relevant.
The Quick View menu Press the ring on your thermostat to switch from the temperature screen to the Quick View menu. Here you can change your thermostat's mode (from heating to cooling, for instance) and dig into settings where you can change your temperature schedule, update the Wi-Fi network, and more (depending on your thermostat model).
Notifications and errors If there's a problem or something important you should know, a message will pop up on your thermostat or in the app. There may also be an icon on the temperature screen after the message goes away.
Farsight Nest Learning Thermostat (3rd gen and 4th gen) also have Farsight. Farsight shows you practical information such as the time, the weather or the temperature, in a large format that's easy to read from across the room.

The temperature screen

The basics

Nest Learning Thermostat (4th gen)	Nest Learning Thermostat (3rd gen)	Nest Thermostat E
Nest Learning Thermostat (4th gen)	Nest Learning Thermostat (3rd gen)	Nest Thermostat E

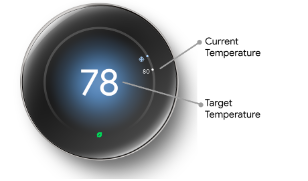

• The temperature screen will show you the current temperature in your home, and the temperature your system is set to.
  • The small number near the edge of the screen is the Current Temperature measured by your thermostat's sensors. If you have a Nest Temperature Sensor that's currently active, it'll show the temperature measured by the sensor, which is typically located in a different room from the one your thermostat is in.
  • The large number in the center of the screen is the Target Temperature. This is the temperature your system is set to heat or cool to. Turn your thermostat's ring clockwise or counterclockwise to adjust the Target Temperature.
  • It'll show "ECO" and the Nest Leaf icon instead of a number indicating the temperature when your thermostat is set to Eco Temperatures to help save energy.

Tip: Nest Learning Thermostat (4th gen) shows additional information based on how you set the Eco Temperature.

• Eco hold: You used the Hold option to set your Eco Temperature preset. For more information about holding temperatures, refer to Hold the temperature on your thermostat.
• Auto-eco: Your thermostat automatically switched to your Eco Temperature preset because it detected no one was home. For more information about how Eco Temperatures work, refer to Learn about Eco Temperatures, Auto Eco and how to change settings.
• Adaptive eco: Your thermostat automatically switched to your Eco Temperature preset because it detected no one was home and you turned on the Adaptive Eco setting, which automatically adjusts your Eco Temperature preset. For more information about Adaptive Eco, refer to Adaptive Comfort and Adaptive Eco.

• Icons will appear at the bottom of the temperature screen to let you know what's happening. For example, the Nest Leaf appears when you've selected an energy-saving temperature. Refer to the icons section below for details.
• The color will change between orange (heating) blue (cooling) and black (off or ECO) depending on your system's current state. The display may show a message like "Heat set to" or "Cooling."
• The thermostat screen will turn off when it notices that there has been no recent activity nearby. If you've enabled Farsight, the screen will switch to the option you've selected (the room temperature, time, weather, etc.).
• Important notifications such as an error, issue with your system, or an upcoming energy Rush Hour will be automatically shown on the temperature screen. You can manually dismiss most notifications, except critical errors. Notifications will automatically disappear after a while, or when the issue is resolved.
• Press the thermostat to manually switch to the Quick View screen if needed. Remember, Nest thermostats don't have touchscreens, press down until you hear a click.
• You can also find the temperature screen in the Nest or Google Home app. Tap your thermostat on the Nest or Home app home screen to bring it up. There are some key differences between what is shown on your thermostat's temperature screen and the one in the app.

  Differences between the app and thermostat temperature screens

Time-to-Temperature

When you manually change the temperature on your thermostat or with the app, it’ll show approximately how long it will take for your home to reach the temperature you've chosen. Your Nest thermostat will estimate the Time-to-Temperature in increments of five minutes. If it's less than ten minutes until the temperature you've selected is reached, the display will read, "less than ten minutes." If it's more than two hours, Nest will read "IN 2+ HR."

Once the target temperature is reached, the Time-to-Temperature will disappear, and the screen background will turn from orange (heating) or blue (cooling) to black.

The Time-to-Temperature estimate will get more accurate as your thermostat continues to learn how your home warms up and cools down.

When Time-to-Temperature won't appear

• Time-to-Temperature estimates will only appear for temperatures that you've manually set with the thermostat or the Nest or Home app. Temperatures that you've put into your schedule and temperatures added by Auto-Schedule won't have a Time-to-Temperature displayed.

• Your Nest thermostat won't display a Time-to-Temperature estimate if continuous heating or cooling is needed to maintain the temperature that you've selected, or if the temperature fluctuates unexpectedly. For example, if you have a poorly insulated home and an extreme cold front rolls in, your heating system might have to constantly cycle to keep the temperature up. In this case, the display will simply read "HEATING" without a time.

Differences between the app and thermostat temperature screens

There are some differences between what appears in the Nest or Home app and on your thermostat. The app has some extra options for system controls, the current humidity in your home, and information about all the temperature sensors connected to your thermostat.

On your thermostat

• Whether your system is heating, cooling or idle
• The target temperature that your system is set to heat or cool to
• Fan (when it's running)
• Time-to-Temperature
• Nest Leaf (depending on target temperature)
• Eco (when thermostat switches to Eco Temperatures)

In the Nest or Home app

• System Mode (to switch between Heat, Cool, Heat • Cool, Eco and Off modes)
• Fan control (to manually turn your system's fan on and off)
• Schedule (to change the temperature schedule)
• History (to show your Energy History)
• The current humidity in your home
• Settings (to change preset temperatures, set a fan schedule, and more). Tip: Some settings are only available in the Nest app. Temperature Lock, Farsight, and Humidifier/Dehumidifier are available in the Home app.
• Nest Temperature Sensors that are connected to your thermostat.

Temperature screen icons

The icons below appear when needed. However, this will depend on your system as well as whether you've opted into an energy savings program. So, it may not show one or more of them at all.

Nest Leaf	This icon will appear when your thermostat is set to an energy efficient temperature. Use the Nest Leaf as a guide to help you save energy. Learn more about the Nest Leaf
Rush Hour Rewards or Seasonal Savings	This icon appears during either a Rush Hour or Seasonal Savings event. Learn about Rush Hour Rewards Learn about Seasonal Savings
Fan	If you can turn on your system's fan independently of heating or cooling, the fan icon will appear on the temperature screen when it's running. How to control your fan with the Nest thermostat
Airwave or	This icon will appear on your temperature screen if your Nest thermostat is using Airwave to help save you energy. Learn about Airwave
Humidity or	This icon is displayed on the temperature screen whenever your Nest thermostat is using your system to adjust the humidity in your home. This icon will only appear if you have a humidifier or dehumidifier installed on your thermostat. You can set times when your humidifier or dehumidifier won't run, so they won't disturb you. Learn How to change Quiet Time settings.
Sunblock	This icon will appear when Sunblock uses your Nest thermostat's light and temperature sensors to help keep you comfortable. Learn about Sunblock

The Quick View menu

The Quick View menu gives you easy access to important settings and information about your thermostat. Press your thermostat's ring to open the Quick View menu. It will show you several options to choose from, each represented by an icon. Turn the ring and press to select the one you want. Note that the options displayed in the Quick View menu vary based on the thermostat model.

Done or	Select this icon and press the thermostat ring to return to the temperature screen.
Off or Heat or Cool or Heat•Cool or	Select the mode icon to choose whether your thermostat uses heating, cooling or both to keep your home comfortable. The available modes will depend on your equipment. For example, the display will show Cool and Heat • Cool modes if your thermostat is connected to central air conditioning. Switch between thermostat modes Learn about Off mode
Hold	Choose to maintain a specific temperature for as long as you want. Hold the temperature on your thermostat
Eco	Your thermostat will automatically switch to Eco Temperature when your home is unoccupied to help save energy. You can also manually set it by selecting this icon. Learn about Eco temperatures
Sensors	Switch which sensor the thermostat is currently using. Learn about the Nest Temperature Sensor
Fan	This icon will appear only if your system has a fan that can be controlled separately from heating and cooling. Select this icon to turn your fan on or off right away, or set a daily schedule. How to control your fan with the Nest thermostat
Energy	Select this icon to bring up a quick summary of yesterday's energy use if it's available. Press the thermostat ring to show more details about your Energy History for the last 10 days. Tip: If you have a Nest thermostat E, you'll find History under Settings instead. How to read your Energy History
Schedule	Highlight this icon to show the next upcoming temperature in your schedule. Select this icon to show and change your weekly schedule. Tip: If you have a Nest thermostat E, you'll find Schedule under Settings instead. Edit your Nest thermostat's temperature schedule
Settings	Settings is where you can change your thermostat's options and shows a detailed information that can help you troubleshoot problems. Learn about settings on the Nest thermostat
Exclamation point	Tip: If the thermostat is offline, the display will show an exclamation point inside the Settings icon. You can still control your heating and cooling with the thermostat, but you won't be able to control the temperature with the Nest app. Troubleshoot an offline thermostat

The Farsight screen

The Nest Learning Thermostat (3rd and 4th gen) can automatically wake up and switch to the Farsight screen when there's activity within 10 feet. The Farsight screen shows you useful information in a large format that makes it easy to read even from the other side of the room.

For the Nest Learning Thermostat (4th gen), you have more options for Farsight Faces and the information to display. Learn how you can customize the Farsight display on your Nest Learning Thermostat (4th gen).

Things Farsight can show you

You can choose what Farsight shows you in your Nest thermostat's settings: The thermostat's target temperature The current room temperature An analog clock A digital clock The weather and forecast Tip: No matter which Farsight setting you choose, your thermostat will always go to sleep to conserve power. It'll also show important messages such as Furnace Heads-Up, or other alerts that require your attention.

Farsight changes when you get closer to your thermostat

When the Farsight screen is active, it'll automatically show you more details when you get closer to your thermostat. Below are examples of what will appear, depending on your Farsight setting.

Tip: To exit Farsight and use your thermostat to change the temperature or other settings, press on your thermostat or turn the ring.

Nest Learning Thermostat (4th gen)

Farsight setting	Far When you're about 10 feet away	Near When you're within about 5 feet
New faces
Nest classic Provides an immediate view of the desired temperature and current operating conditions.
Seasonal art Reflects changes in seasons through animated illustrations and rotates at the start of each month. Check out the different faces of Seasonal art.
Minimal Uses minimalist line drawings to show your thermostat's current mode. Check out the different faces of Minimal.
Temp controller Displays current temperature settings. Temp controller will show the same information regardless of distance.
Current faces
Indoor temps Shows current and target indoor temperature at a glance.
Digital clock Displays the time in large, easy-to-read numbers.
Analog clock Shows the time in an analog clock style.
Weather Provides real-time outdoor temperature and weather conditions based on location.

Nest Learning Thermostat (3rd gen)

Farsight setting	Far When you're about 10 feet away	Near When you're within about 5 feet
None (off)	Display stays off
Target temperature
Current room temperature
Analog clock
Digital clock
Weather and forecast

Farsight is disabled when your thermostat's battery is low

Your thermostat charges its internal battery with the power it gets from the wires connected to your system. It closely monitors its internal battery charge level, and if the charge gets too low, your thermostat will take energy saving measures to help ensure you have full control of your heating and cooling, and access to critical thermostat features.

When the charge gets low enough, Farsight will automatically turn off until the battery recharges. You'll still be able to use your thermostat as usual, but the display will only turn on when you're within about 3 feet. After your thermostat has had a chance to recharge its battery enough, Farsight will work again.

Why only Nest Learning Thermostats (3rd and 4th gen) have Farsight

• These thermostats have advanced sensors needed to sense your presence from farther away.
• Farsight takes advantage of the larger, high-res screen on the newer thermostats so it's easy to read.

Farsight is available only on Nest Learning Thermostat (3rd gen) with software 5.0 or later installed.

How to change Farsight settings

You can turn Farsight off or change what it shows you on your thermostat's screen or in the Google Home app.

On your thermostat

1. Press the thermostat ring to open the Quick View screen.
2. Turn the ring to Settings and press to select.
3. Open the Farsight settings:
   • Nest Learning Thermostat (3rd gen): Select Display Farsight.
   • Nest Learning Thermostat (4th gen): Select Farsight.
4. Choose what Farsight will show you. To turn it off, select Off or None.

In the Google Home app

1. Open the Google Home app .
2. Tap Home   Climate   your thermostat.
3. Tap Settings Farsight Choose a Farsight display.
   • Nest Learning Thermostat (3rd gen): To turn Farsight on or off, tap the switch next to "Use Farsight."
4. Select your preferred Farsight face.

Error codes and notifications

You'll find messages on your Nest thermostat about things that you should know and may need your attention. Certain thermostat errors and notifications will also appear in the Nest or Home app.

Here's a short list of key notifications that may appear on your thermostat:

• Energy Rush Hour
• Seasonal Savings
• Safety Temperature
• Furnace Heads-Up
• Air filter reminders
• Thermostat error codes

Thermostat error codes

Your thermostat will show you an error message when it detects a problem with things like wiring, Wi-Fi, or power.

Sometimes you can dismiss an error code if it's non-critical. However, it may come back if the problem persists. Other issues that require your immediate attention will remain on your thermostat until the problem is fixed.

Troubleshoot error codes: When it shows an error code, your thermostat will tell you a bit about the problem. To get help with a specific thermostat error message, make a note of the code in the message ( typically a letter followed by two numbers) and look it up in our troubleshoot thermostat error codes article for specific troubleshooting steps.
