Export team audit logs to BigQuery

 Note: Teams are supported for Enterprise plans only.

To monitor recent activity for a team app, you can use AppSheet's Audit History, as described in Monitor team app activity using Audit History.

Alternatively, you can export the Audit History logs for your team to BigQuery to manage and analyze the data.

Benefits of using BigQuery include:

  • Monitor recent activity across multiple team apps
  • Use your existing monitoring tools to analyze the data
  • Query the Audit History logs for specific data across team apps
  • Extend the retention period for your AppSheet audit logs

Export your team audit logs to BigQuery as described in the following sections:

Configure the export of team audit logs to BigQuery

To configure the export of team audit logs to BigQuery, perform the following steps:

Step 1: Create a BigQuery dataset in your Google Cloud project

To create a BigQuery dataset in your Google Cloud project:

  1. In the Google Cloud console, on the project selector page, select or create a Google Cloud project.

    Go to Google Cloud console

  2. Open the BigQuery page in the console.

    Go to the BigQuery page

  3. Create a new dataset for your AppSheet data, as described in Creating datasets.
    For example:

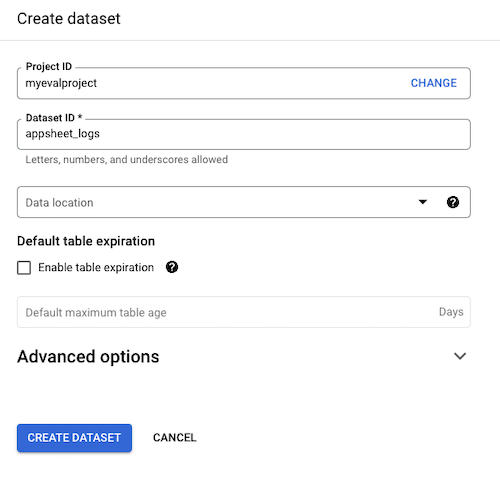

    Create dataset dialog with myevalproject sert as the project ID and appsheet_logs set as the dataset ID.

Step 2: Connect to the BigQuery dataset from your AppSheet team

To connect to the BigQuery dataset from your AppSheet team:

  1. Sign in to AppSheet.
  2. Click My team in the account drop-down.
  3. Click the Settings tab.
  4. Under Configure Audit Log Export, click Add a new export.
  5. Enter values for the following fields:


    Field

    Description

    GCP Project ID

    ID of your Google Cloud project.

    BigQuery Dataset Name

    Name of the BigQuery dataset to connect to. For example: appsheet_logs

    Table Name

    Name of the table. Defaults to audit_log_export.

  6. Click Save.
    AppSheet generates a new service account in your Google Cloud project that is associated with your AppSheet team account.
  7. Click Copy Copy icon to copy the service account name. It is needed in the next step.

Step 3: Update the BigQuery dataset permissions in the Google Cloud console

To update the BigQuery dataset permission in the Google Cloud console:

  1. Open the BigQuery page in the console.

    Go to the BigQuery page

  2. Select the new BigQuery dataset in the Explorer panel.
  3. Select Sharing > Permissions.
  4. Click +Add principal.
  5. In the New Principals field, paste the service account name that you copied in the last step.
  6. In the Role drop-down, select BigQuery Data Editor.
    Type the role name in the Filter Type to filter field to easily locate it in the list of roles.
  7. Click Save.
After the BigQuery dataset permissions are updated, a new table, audit_log_export, is created for your dataset.

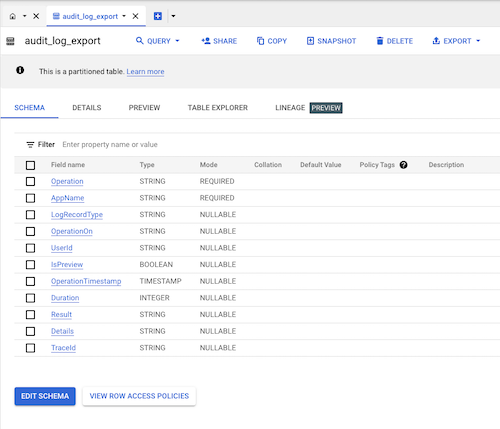

audit_log_exports table displaying the schema tab

Step 4: Test the connection to the BiqQuery dataset

To test the connection to the BigQuery dataset:

  1. Sign in to AppSheet.
  2. Click My team in the account drop-down.
  3. Click the Settings tab.
  4. Under Configure Audit Log Export, click Test associated with the configured export that you want to test.

The following message displays if the connection is successful: Connection successful

If an error is returned, ensure that the BigQuery dataset has been created and the appropriate permissions have been set.

Run a query on the exported data

AppSheet exports to BigQuery the Audit History logs for your team approximately every hour starting from the time the connection is configured between AppSheet and BigQuery.

After you have configured the export of team audit logs to BigQuery, you can run an interactive or batch query on the dataset.

Rows added to BigQuery initially have a _PARTITIONTIME of null. If you use the default query set by BigQuery, you will not get results.

To run an interactive query:

  1.  Open the BigQuery page in the console.

    Go to the BigQuery page

  2. Select the audit_log_export table for the BiqQuery dataset in the Explorer panel.
  3. Click Query > In new tab or Query > In split tab.
  4. Update the query details. (See the sample query below.)
  5. Click Run.

Sample query

The following sample query:

  • Selects all columns from the audit_log_export table in the dataset-id dataset in the project-id project that have no _PARTIONTIME (new logs) or that were logged before the current date.

    To populate project-id.dataset_id, you can copy the string by selecting More Three-dot menu vertical > Copy ID for the dataset in the BigQuery Explorer panel. The result will include both values in the proper format.

  • Orders the events so that the most recent are first.
  • Limits the results to 1000 events.

SELECT
 *
FROM
 `project-id.dataset-id.audit_log_export`
WHERE
 _PARTITIONTIME IS NULL OR DATE(_PARTITIONTIME) <= CURRENT_DATE()
ORDER BY OperationTimestamp DESC
LIMIT 1000;

Sample query results

The following shows the Query results:

Sample query and results in Google Cloud console

View and edit the audit log export configuration for a team

To view and edit the audit log export configuration for a team:

  1. Sign in to AppSheet.
  2. Click My team in the account drop-down.
  3. Click the Settings tab.
  4. Under Configure Audit Log Export, click the configured export that you want to edit.
    The Edit audit log export dialog displays.
  5. Edit the configured export details.
  6. Click Save.

Delete an audit log export configuration for a team

To delete an audit log export configuration for a team:

  1. Sign in to AppSheet.
  2. Click My team in the account drop-down.
  3. Click the Settings tab.
  4. Under Configure Audit Log Export, click Delete  associated with the configured export that you want to delete.
  5. When prompted, confirm the action.
