Sample email templates

The sample templates in this section are all based on the Order Capture sample app. This sample includes both an email body template and an attachment template. The variables in the templates refer to the column values in the Order Capture sample app.

Review the following sample email templates:

• Template with column name variables
• Template with expression variables
• Templates with embedded templates
• Order template in list format
• Order template in table format
• Customer template in list format
• Customer template in table format

See also Use templates in a bot.

Template with column name variables

The template with column name variables sample displays the column values from a row in the Customers table. The template contains formatted text and column name variables. Each column name variable specifies the name of one column value from the Customers row.

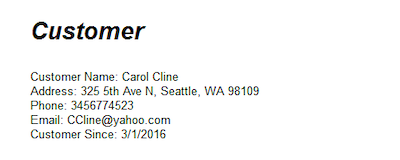

The template produces the following output:

Template with expression variables

The template with expression variables sample contains both column name variables and expressions. It displays column values from the Orders table, column values from its parent Customers table, and computed values from its child Order Details table.

It displays the Customer Name column value using the following expression:

Customer Name: <<[Customer Name].[Name]>>

[Customer Name] is the Customer Name reference column value in the Orders table. It refers to the parent Customers row. [Customer Name].[Name] displays the Name column value from the parent Customers row.

This template computes the total value of all child Order Details rows using the following expression:

SUM(SELECT(Order Details[Total], [Order Id] = [_THISROW].[Order Id]))

The expression computes the sum of all Order Details rows having an Order Id column value that matches the Order Id in the current Orders row. That is, it computes the sum of all Order Details rows for this Orders row.

Template with embedded templates

You can display a hierarchy of rows using embedded templates. For example, you can display a single Customers row. Beneath the Customers row, you can display all of its child Orders rows. Beneath each Orders row, you can display all of its child Order Details rows.

Each embedded template starts with <<Start:StartExpression>> and ends with <<End>>. The Start expression following the colon yields the list of rows to be formatted using the embedded template. The <> and <>elements must match, much like parentheses do within an arithmetic expression.

Order template in list format

The Order template in list format sample is used when an Orders row is updated.

It contains templates that display the following:

• Single parent Customers row for the updated Orders row displayed in list format.
• Single updated Orders row displayed in list format.
• List of child Order Details rows for the updated Orders row displayed in list format.

Order template in table format

The Order template in table format sample is used when an Orders row is updated. It's like the previous template, but displays the Order Details rows in table format. It contains templates that display the following:

• Single parent Customers row for the updated Orders row displayed in list format.
• Single updated Orders row displayed in list format.
• List of child Order Details rows for the updated Orders row displayed in table format.

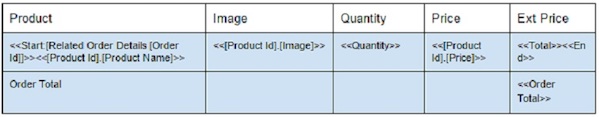

The Order Details rows are displayed in table format by the following portion of the template. It contains a header row template element, a data row template element, and a trailer row template element. It produces a table containing one header row, one or more data rows, and one trailer row.



The first cell in the data row template element contains a <<Start:StartExpression>> followed by an expression yielding the first data value to be displayed. The Start expression following the colon yields the list of child rows to be formatted using the data row template element. In this case, the Start Expression yields the list of child Order Details rows for the parent Orders row. The data row template element values between <> and <> are used to format each child Order Details row returned by the start expression.

Because the start expression refers to the Order Details table, the variables within the data row template element refer to column values in the Order Details table. For example, <<Quantity>> refers to the Quantity column value of that table. <<[Product Id].[Product Name]>> dereferences Product Id (a Ref column that points into the Products table) to retrieve the corresponding Product Name value (from the Product table).

The last cell in the data row template element contains the name of the last data column value to be displayed. It is followed by <<End>>.

A trailer row template element can be used to display summary information. Here we display the total value of all preceding Order Details rows. The outer enclosing template isn't shown here, but it displays Orders rows. Hence, <<Order Total>> refers to the Order Total column value in the Orders table.

Customer template in list format

The customer template in list format sample is used when a Customers row is updated.

It contains templates that display the following:

• Single updated Customers row displayed in list format.
• All child Orders row for the updated Customers row displayed in list format.
• All child Order Details rows for the parent Orders rows displayed in list format.

The part of the template that displays Orders rows starts with this expression:

Start:ORDERBY([Related Orders By Customer Name], [Order Date])

<<Start:StartExpression>> signifies the start of an embedded template. The start expression following the colon yields a list of child rows to be formatted using the embedded template. The embedded template is terminated by <<End>>. Between <> and <>, include the formatted text, variables, and expressions to format each Orders row.

The start expression above includes an ORDERBY() to sort the child Orders rows in ascending (oldest-to-newest) order by the Order Date column value. If order wasn't important, you could omit ORDERBY() and simply specify:

Start:[Related Orders By Customer Name]

You can limit the number of rows displayed by using a TOP() expression with an ORDERBY() expression. The first argument to the TOP() expression must be an ORDERBY() expression. The second argument to the TOP() expression specifies the maximum number of rows to be chosen. This second argument can be either a constant or an expression. For example:

Start:TOP(ORDERBY([Related Orders By Customer Name], [Order Date]), 3)

You can select the child rows to display by specifying a SELECT() expression. For example, to display Orders having an Order Status value of Open, specify this SELECT() expression:

SELECT([Related Orders By Customer Name][Order Id], [Order Status] = "Open")

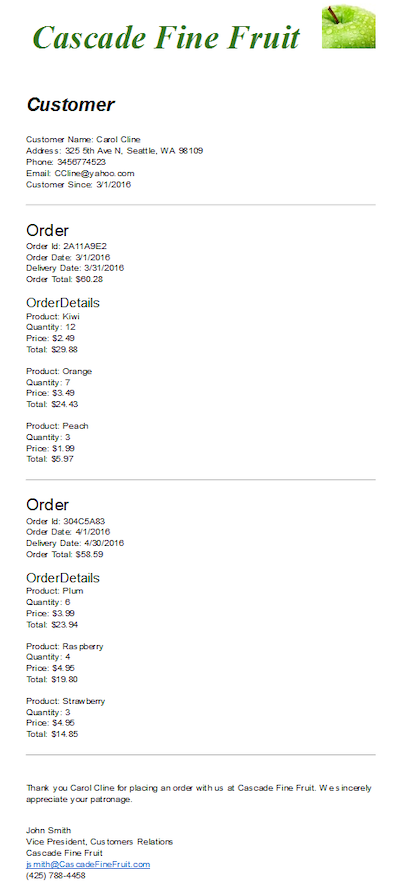

This template produces the following output:

Customer template in table format

The customer template in table format is used when a Customers row is updated.

It contains templates that display the following:

• Single updated Customers row displayed in list format.
• All child Orders row for the updated Customers row displayed in list format.
• All child Order Details rows for the Orders rows displayed in table format.

A Google Docs table is used to display the Order Details rows. The table may contain zero or more header rows, one data row, and zero or more trailer rows.

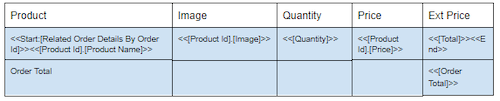

The Order Details rows are displayed in table format by the following portion of the template. It contains a header row template element, a data row template element, and a trailer row template element. It produces a table containing one header row, one or more data rows, and one trailer row.

The first cell in the data row template element contains a <<Start:StartExpression>> followed by an expression yielding the first data value to be displayed. The Start expression following the colon yields the list of child rows to be formatted using the data row template element. In this case, the start expression yields the list of child Order Details rows for the parent Orders row. The data row template element values between <> and <> are used to format each child Order Details row returned by the start expression.

Because the start expression refers to the Order Details table, the variables within the data row template element refer to column values in the Order Details table. For example, <<Quantity>> refers to the Quantity column value of that table. <<[Product Id].[Product Name]>> dereferences Product Id (a Ref column in the Order Details table that points into the Products table) to retrieve the corresponding Product Name value (from the Product table).

The last cell in the data row template element contains the name of the last data column value to be displayed. It is followed by <<End>>.

A trailer row template element can be used to display summary information. Here we display the total value of all preceding Order Details rows. The outer enclosing template isn't shown here, but it displays Orders rows. Hence, <<Order Total>> refers to the Order Total column value in the Orders table.

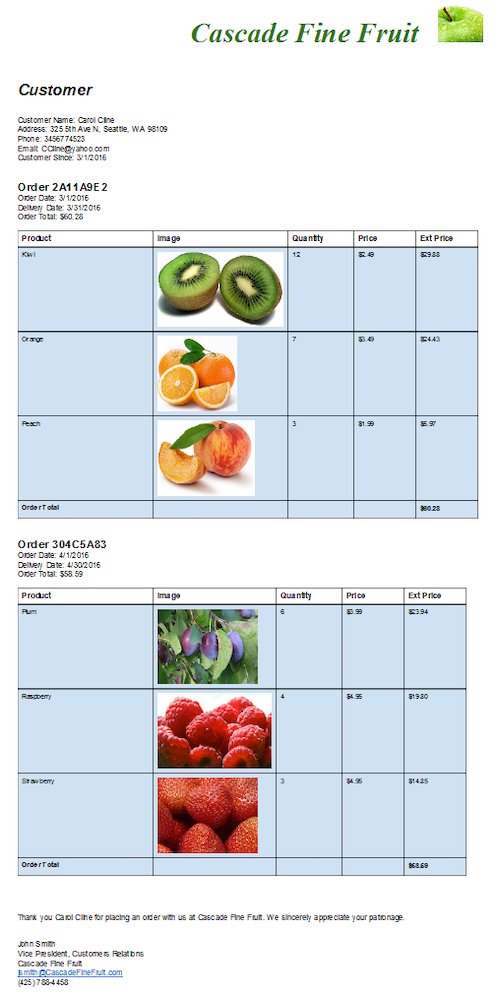

This template produces the following output:
